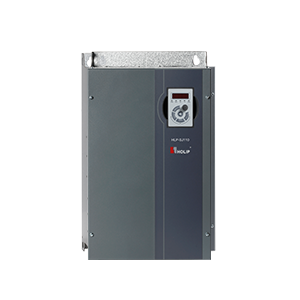

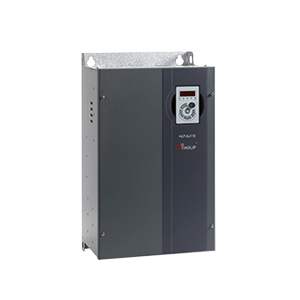

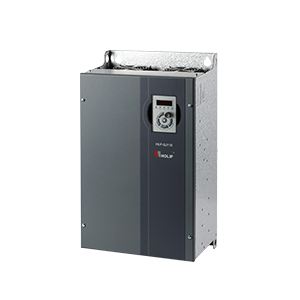

HOME » PRODUCTS » Standard Drive »HLP-SJ110 Multifunction Drive
HLP-SJ110 series drive, based on the A100 platform, is developed for moderate loads, such as plastic machinery. The overload of 135% rated output current is 1min, 180% rated output current is 1s.
air-conditioner, plastic machine
 | High Reliability |  | High Environmental Adaptability |
|
| ||
 | Excellent User Friendliness | ||
| |||
 | Excellent Control Performance | ||
|
| Item | Specification | |
| Power supply | Supply voltage | Three phase 380~480V -20%~+10%; |
| Frequency | 48-62Hz; | |
| Max. imbalance | 3% ; | |
| Motor output | Output voltage | Three phase 0-100% of supply voltage |
| Output frequency | V/F : 0-400Hz , VVC+: 0-200Hz; | |
| IO board control terminals
| Input | 6 digital inputs (1 supports pulse input, pulse range: 1Hz~100kHz); 2 analog input, both can receive voltage or current signals. |
| Output | 2 digital output ; 2 relay output; 2 analogue output (1 can be selected as current output or voltage output via jumper switch). | |
| Power supply | 1 +10V, max current output 10mA; 1 24V, max current output 200mA; | |
| Communication | RS+, RS-, max baud rate 115200bit/s; | |
| Display | 8 segments, 5 numeric displays | Display frequency, warnings, status and so on; |
| Indicator | Light FWD, REV, HZ, A, RPM display various status of the drive; | |
| Data read-outs | Frequency setting, output frequency, feedback value, output current, DC link voltage, output voltage, output power, input terminals state, output terminals state, analogue input , analogue output, 1-10 fault records and accumulated working time etc.; | |
| Environment | Enclosure | IP20; |
| Ambient temperature | -10℃~50℃, derating use when over 40℃; | |
| Humidity | 5%-85% (95% without condensation); | |
| Vibration test | ≤75kW: 1.14g; ≥90kW: 0.7g; | |
| Max. altitude above sea level | 1000m, derating use when more than 1000 meters; | |
| Motor cable length | Shield cable: 50 meters; Unshield cable: 100 meters; | |
| Others | DC choke | ≥37kW Built-in |
| Braking unit | ≤22kW Built-in | |
| Main control functions | Control mode | V/F, VVC+; |
| Start torque | 0.5Hz 150%; | |
| Overload capacity | 135% 60s, 180% 1s; | |
| PWM switch frequency | 2k~16kHz ; | |
| Speed setting resolution | Digital: 0.001Hz; Analogy: 0.5‰ of the max. operating frequency ; | |
| Speed open-loop control accuracy | 30~4000 rpm: tolerance±8 rpm; | |
| Control command source | LCP, digital terminal, local bus; | |
| Frequency setting source | LCP, analog, pulse, local bus; | |
| Ramp control | Selectable 4-speed steps ramp up and down times 0.05-3600.00s; | |
| Basic Functions | Speed Open-loop Control; Process Closed-loop Control; Torque Open-loop Control; AMA Function; Motor Magnetisation; Slip Compensation; Torque compensation; Automatic Voltage Regulation; V/F Control, DC Brake; AC brake; Speed Limit; Current Limit; Flying Start; Reset Function; Counter; Timer; | |
| Application Functions | Wobble Function; Jogging; Multi-speed Control via Digital input; SLC(including Order Control and Parallel Control); Mechanical Braking; UP/DOWN ; Catch up /Slow down; Relative Scaling Reference etc. | |
| Protection Functions | Missing Motor Phase Protection; Low-voltage Protection; Over-voltage Protection; Over-current Protection; Output Phase Loss Protection; Output Short Circuit Protection; Output Grounding Fault Protection; Motor Thermal Protection; Live Zero Timeout Function; AMA Fails; CPU Fault; EEPROM Faults; Button freeze; Duplicate Fails; LCP Invalid; LCP Incompatible; Parameter Read-only; Reference Out of Range; Invalid While Running etc. | |
| Model | Input voltage | Input current (A) | Output current (A) | Rated power (kW) | Power Dissipation (W) | Air flow rate (m³/h) | Net weight (kg) |
|---|---|---|---|---|---|---|---|
| HLP-SJ1100D7543 | 3×380-440V | 3.7 | 2.3 | 0.75 | 38.5 | 51 | 1.3 |
| 3×440-480V | 3.2 | 2.1 | |||||
| HLP-SJ11001D543 | 3×380-440V | 6.4 | 4 | 1.5 | 49.0 | 51 | 1.3 |
| 3×440-480V | 5.5 | 3.6 | |||||
| HLP-SJ11002D243 | 3×380-440V | 8.9 | 5.6 | 2.2 | 65.2 | 51 | 1.3 |
| 3×440-480V | 7.7 | 5.1 | |||||
| HLP-SJ11004D043 | 3×380-440V | 15.8 | 9.9 | 4.0 | 122.9 | 51 | 2 |
| 3×440-480V | 13.6 | 9 | |||||
| HLP-SJ11005D543 | 3×380-440V | 21.3 | 13.3 | 5.5 | 139.4 | 51 | 2 |
| 3×440-480V | 18.4 | 12.1 | |||||
| HLP-SJ11007D543 | 3×380-440V | 28.3 | 17.7 | 7.5 | 211.6 | 68 | 2.5 |
| 3×440-480V | 24.4 | 16.1 | |||||
| HLP-SJ110001143 | 3×380-440V | 35.9 | 25 | 11 | 262.4 | 124 | 5.8 |
| 3×440-480V | 31.4 | 22.7 | |||||
| HLP-SJ110001543 | 3×380-440V | 43.4 | 32 | 15 | 339.3 | 170 | 5.8 |
| 3×440-480V | 38.8 | 29.1 | |||||
| HLP-SJ11018D543 | 3×380-440V | 51.5 | 38 | 18.5 | 418.0 | 230 | 8 |
| 3×440-480V | 46.1 | 34.5 | |||||
| HLP-SJ110002243 | 3×380-440V | 61.0 | 45 | 22 | 468.2 | 272 | 8 |
| 3×440-480V | 54.5 | 40.9 | |||||
| HLP-SJ110003043 | 3×380-440V | 73 | 61 | 30 | 676.3 | 303 | 19 |
| 3×440-480V | 64 | 52 | |||||
| HLP-SJ110003743 | 3×380-440V | 72 | 75 | 37 | 795.0 | 374 | 22 |
| 3×440-480V | 65 | 68 | |||||
| HLP-SJ110004543 | 3×380-440V | 86 | 91 | 45 | 974.8 | 408 | 22 |
| 3×440-480V | 80 | 82 | |||||
| HLP-SJ110005543 | 3×380-440V | 110 | 112 | 55 | 1246 | 476 | 26 |
| 3×440-480V | 108 | 110 | |||||
| HLP-SJ110007543 | 3×380-440V | 148 | 150 | 75 | 1635 | 595 | 26 |
| 3×440-480V | 135 | 140 | |||||
| HLP-SJ110009043 | 3×380-440V | 175 | 180 | 90 | 2204 | 646 | 37 |
| 3×440-480V | 154 | 160 | |||||
| HLP-SJ110011043 | 3×380-440V | 206 | 215 | 110 | 2600 | 714 | 60 |
| 3×440-480V | 183 | 190 | |||||
| HLP-SJ110013243 | 3×380-440V | 251 | 260 | 132 | 3178 | 850 | 60 |
| 3×440-480V | 231 | 240 | |||||
| HLP-SJ110016043 | 3×380-440V | 304 | 315 | 160 | 3689 | 1029 | 60 |
| 3×440-480V | 291 | 302 |
| Voltage & Power | Dimensions（mm） | ||||||
|---|---|---|---|---|---|---|---|
| 3x380-480V | A | B | C | D | E | F | G |
| 0.75-2.2kW | 104 | 125 | 194 | 210 | 152 | 4.5 | - |
| 4.0-5.5kW | 124 | 145 | 230 | 250 | 167 | 4.5 | - |
| 7.5kW | 133 | 155 | 243 | 263 | 177 | 4.5 | - |
| 11-15kW | 150 | 192 | 340 | 365 | 189 | 6.5 | - |
| 18.5-22kW | 150 | 216 | 395 | 420 | 194 | 6.5 | - |
| 30-45kW | 240 | 292 | 492 | 517 | 229 | 9 | - |
| 55-75kW | 240 | 292 | 537 | 562 | 249 | 9 | - |
| 90kW | 240 | 292 | 640 | 665 | 277 | 9 | - |
| 110-160kW | 220 | 350 | 765 | 799 | 375 | 10.5 | 280 |
